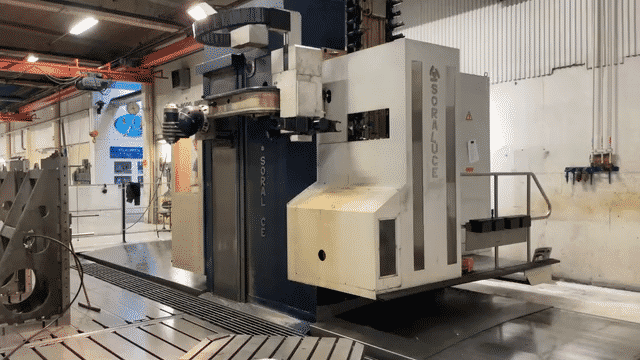

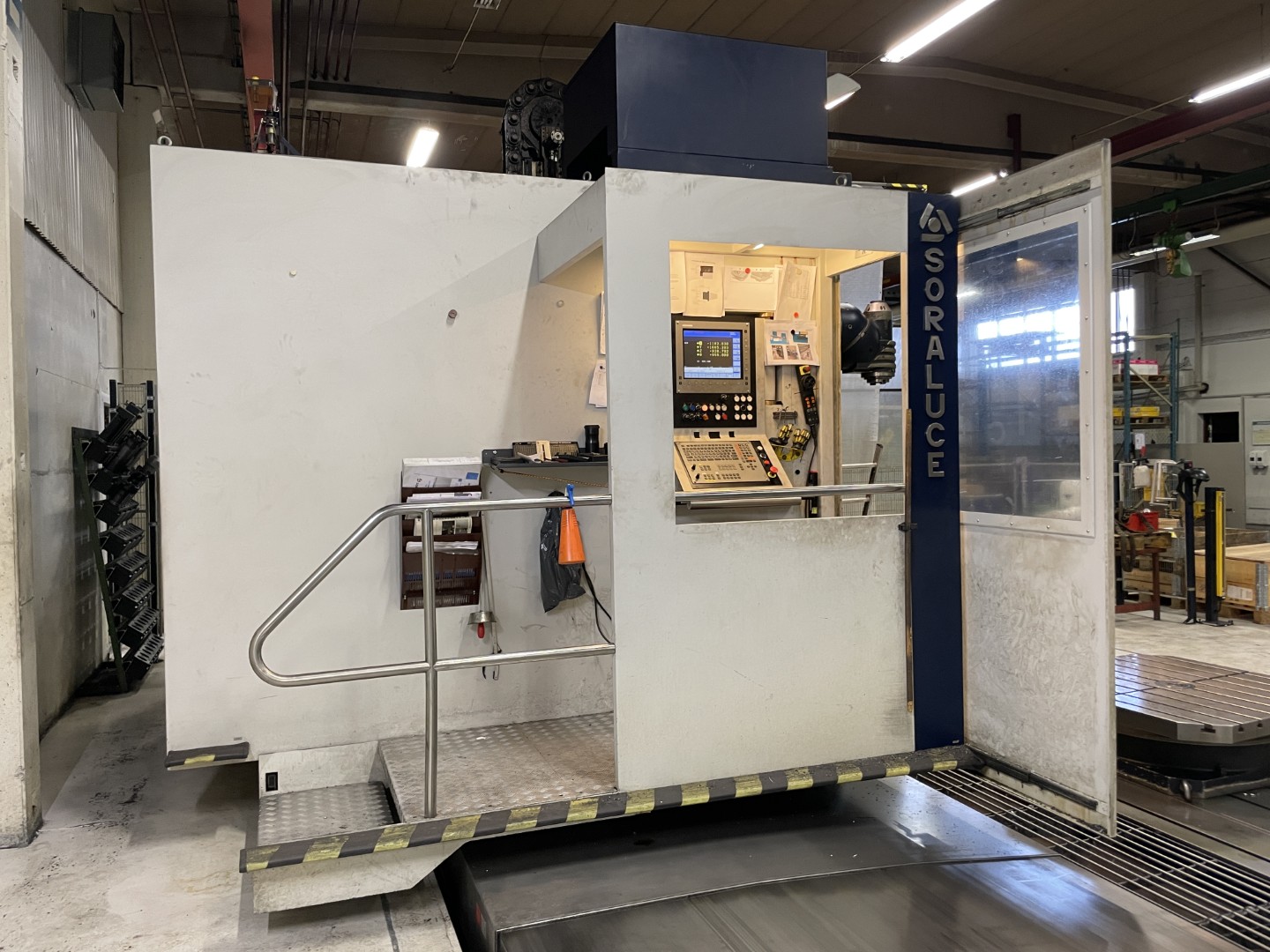

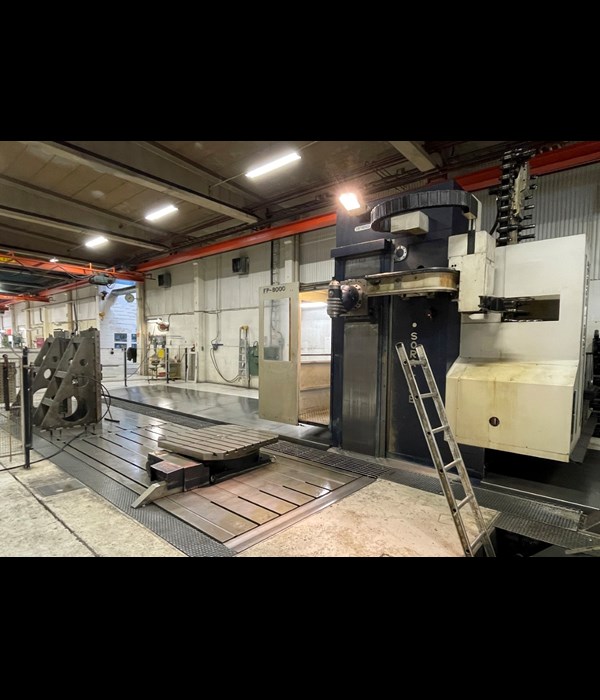

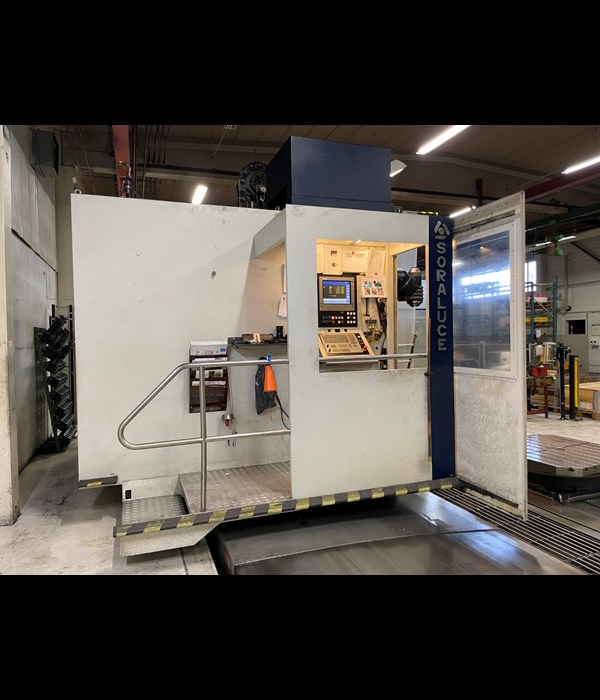

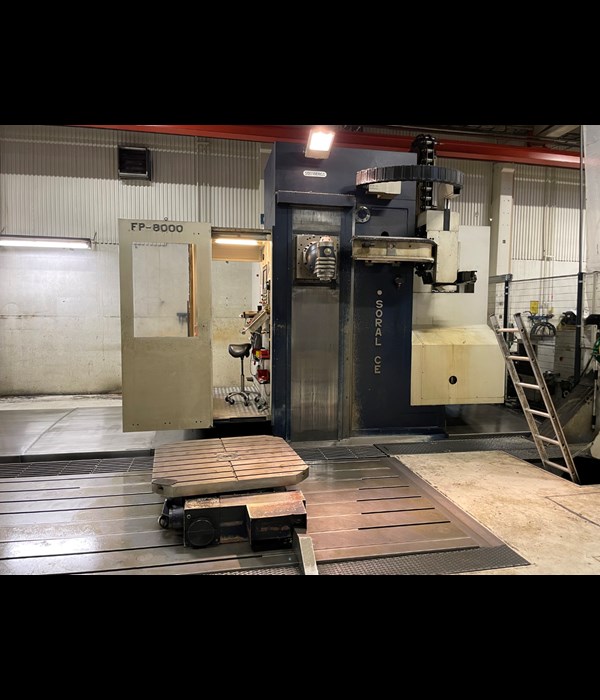

Soraluce FP8000 Heidenhain iTNC530
Milling machine floor type
| Specification | |
|---|---|
| Stock number: | 060850 |
| Longd. travel: | 8000mm |
| Crosstravel: | 1300mm |
| Vertical travel: | 2100mm |

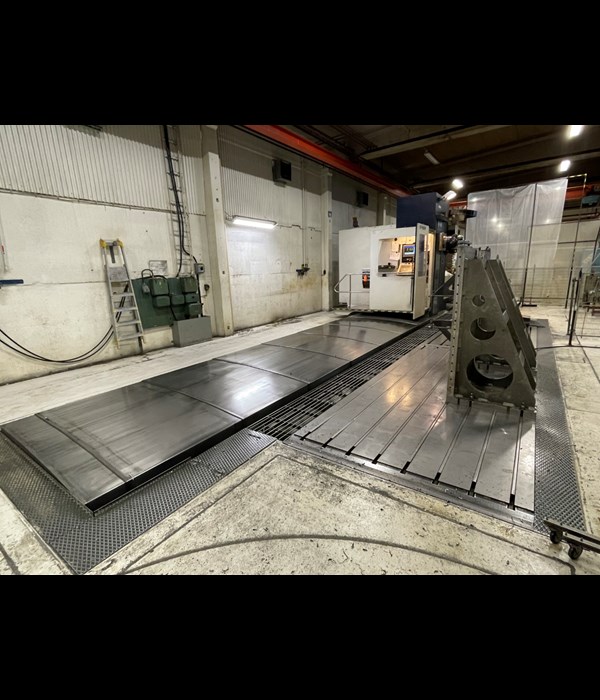

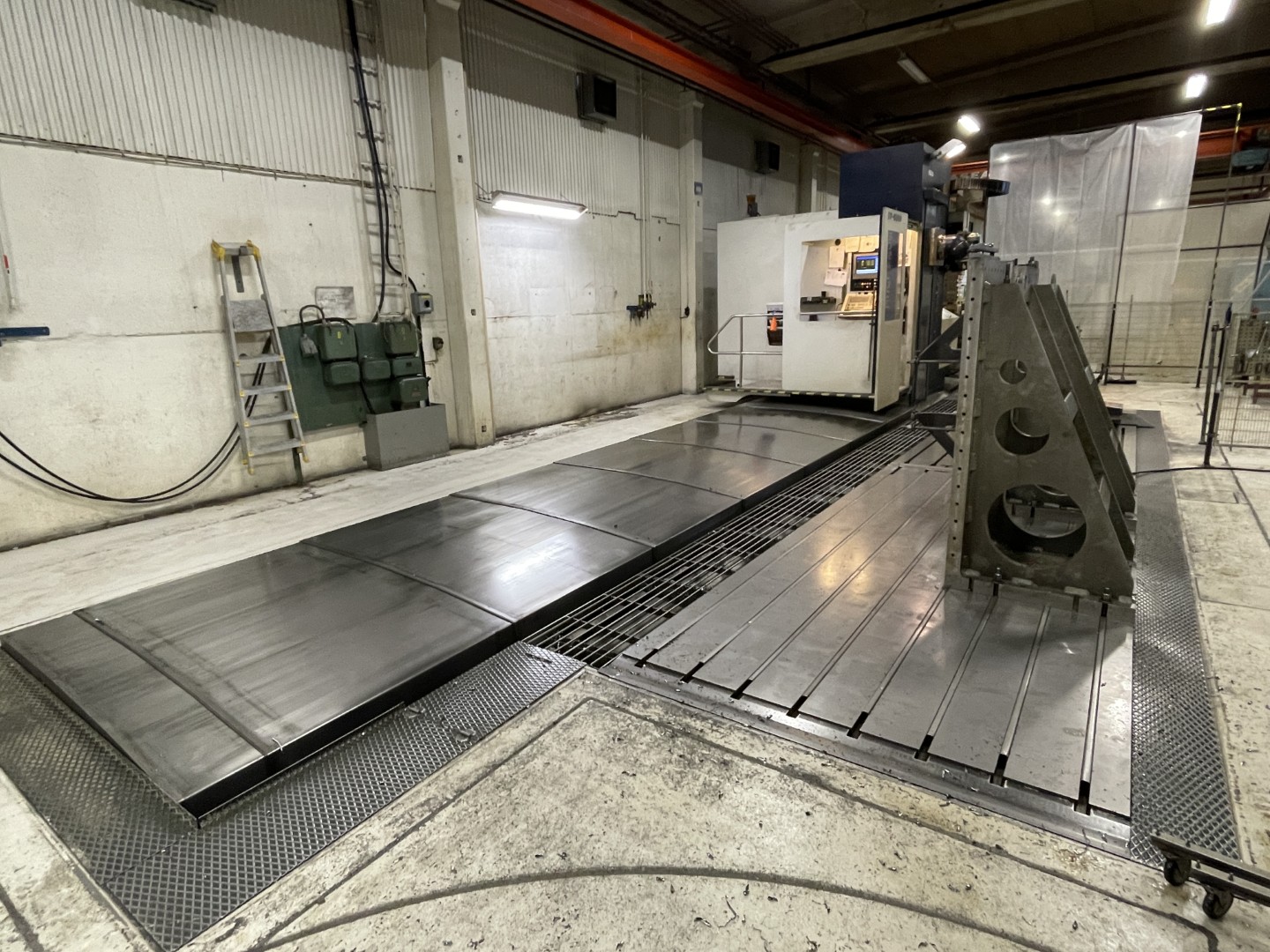

| Floorplate: | 9000x2000x300mm |

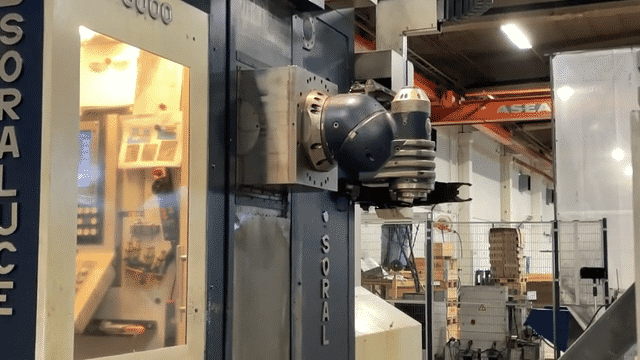

| Aut. millinghead: | 2,5°/2,5° 910Nm |
| Spindlespeed : | 20-4000rpm |
| Spindletaper: | ISO50 |
| Feeds/Rapidtraverese: | 10/25m/min |

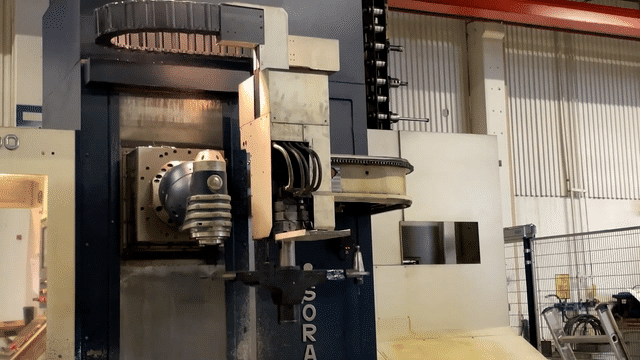

| ATC : | 60pos. |
| Powersupply: | 52kVA/94A |
| Spindlemotor: | 32kW |
| Length: | 13790mm |
| Width: | 5600mm |
| Height: | 5040mm |
| Weight: | 34000kg |
Information

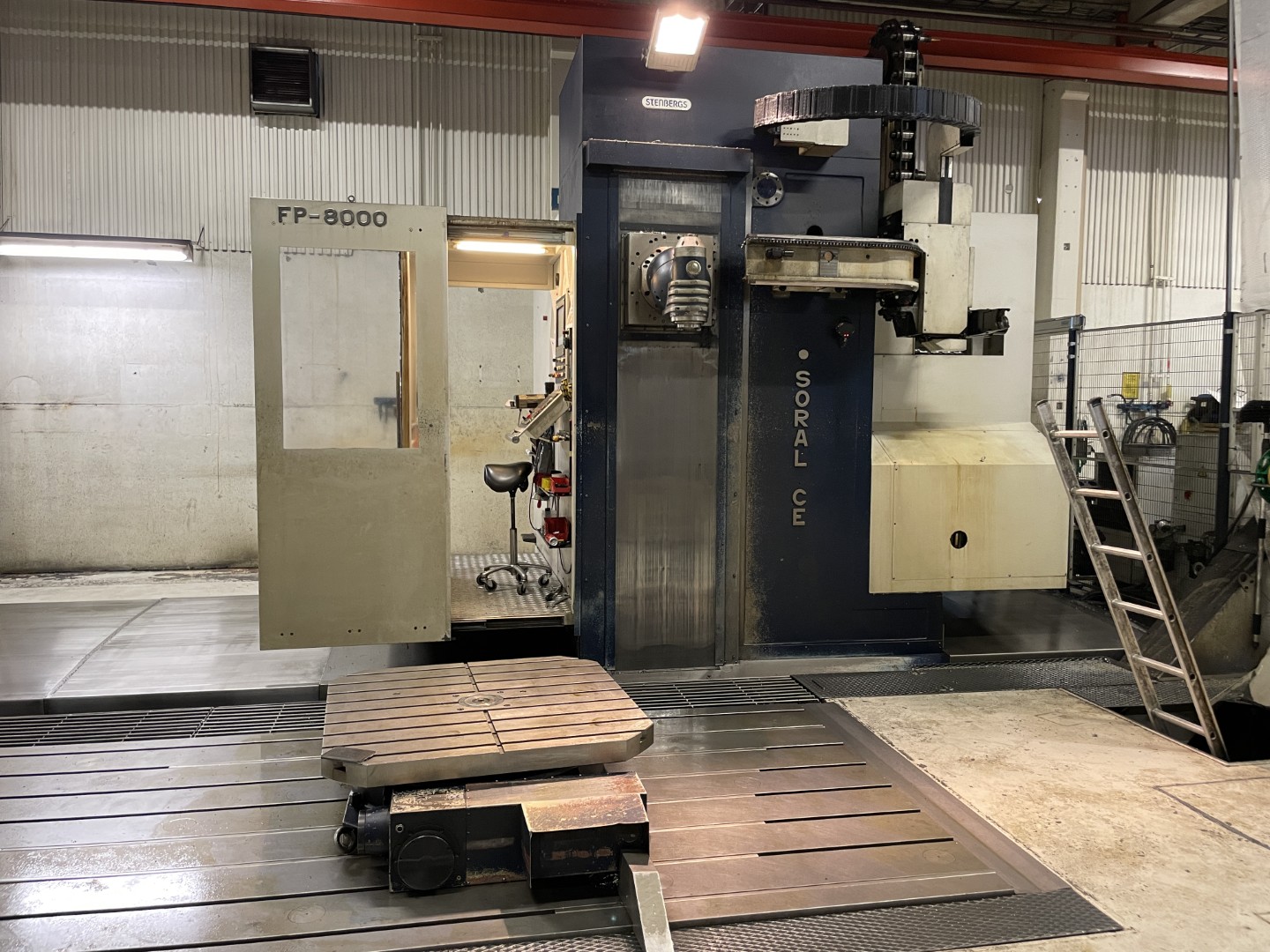

CNC indextable 1200x1200mm,5ton
Hard/software for working in 2 zones
Filmer
This info is to the best of our knowledge, but is not binding in detail. Buyers are responsible to ensure machines comply with local safety regulations.
