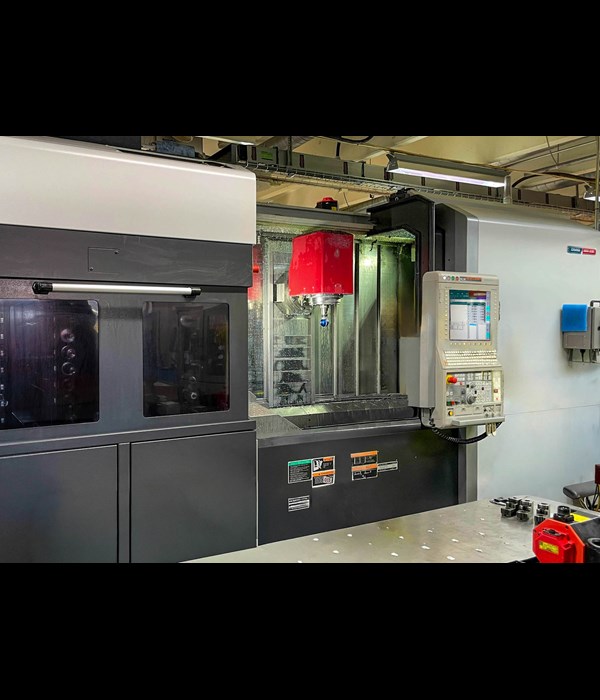

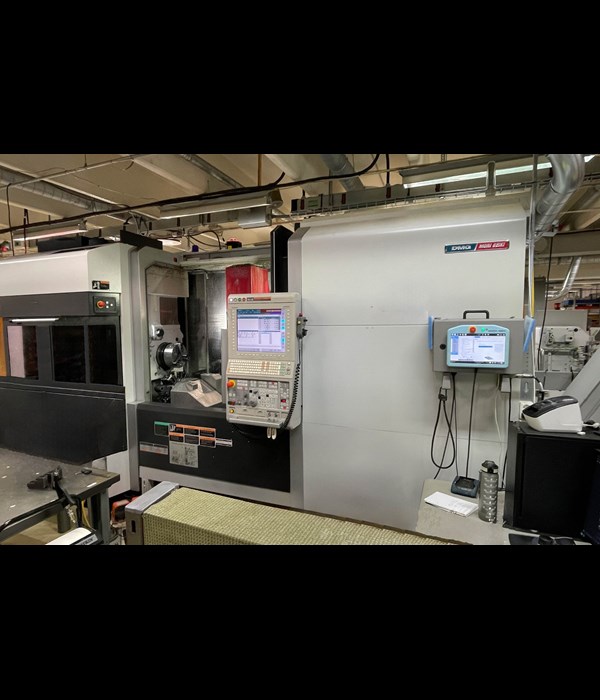

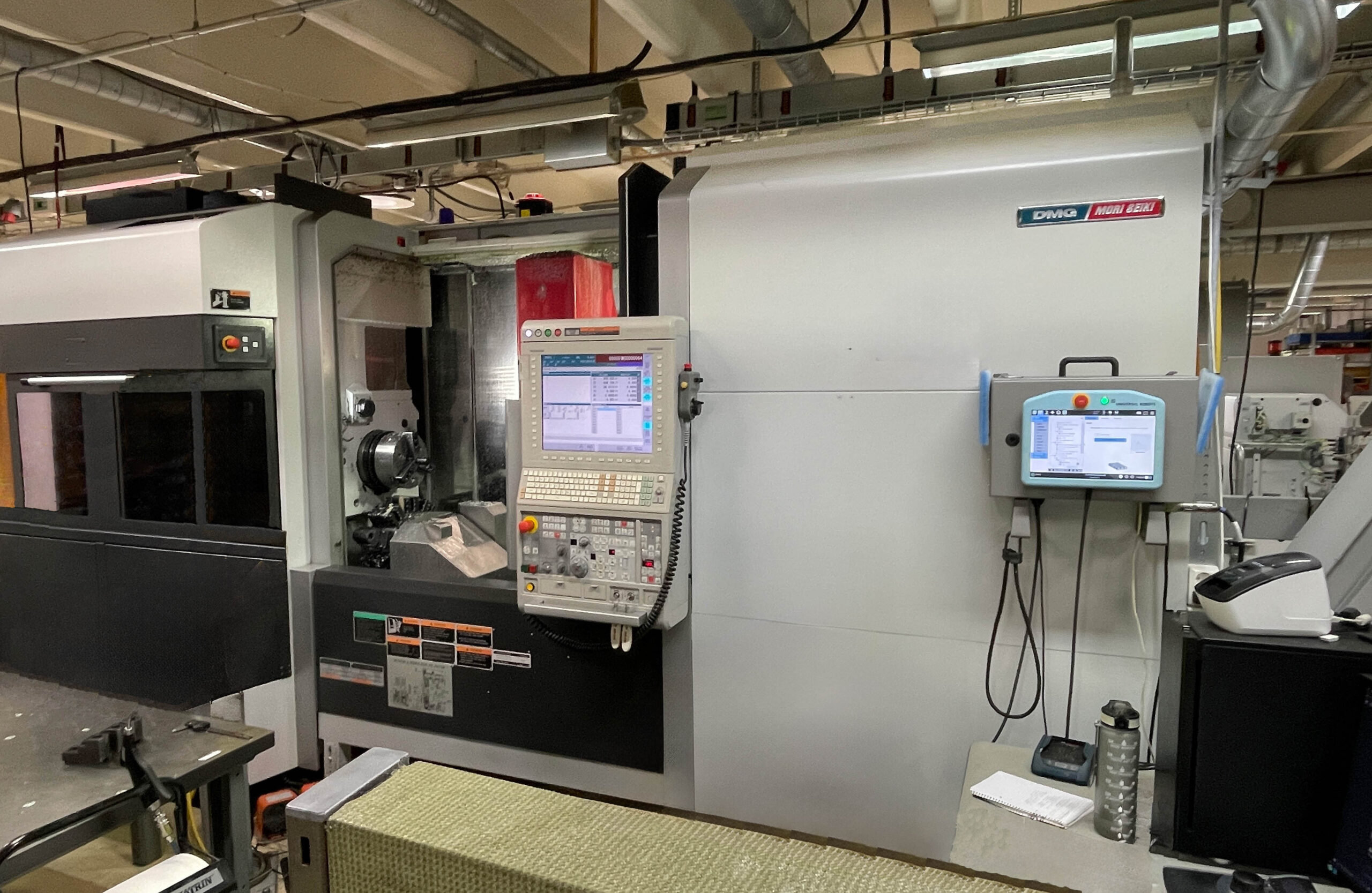

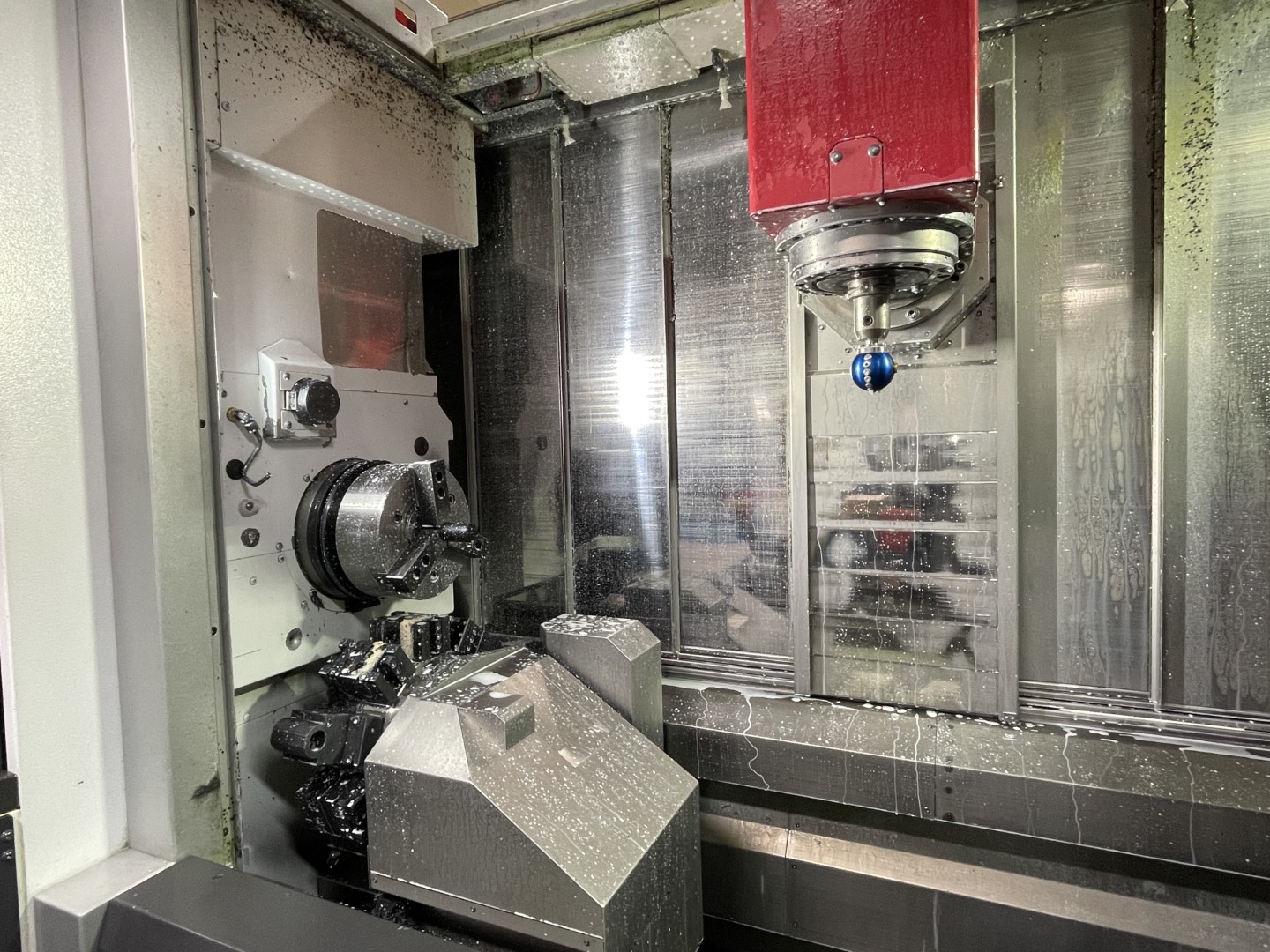

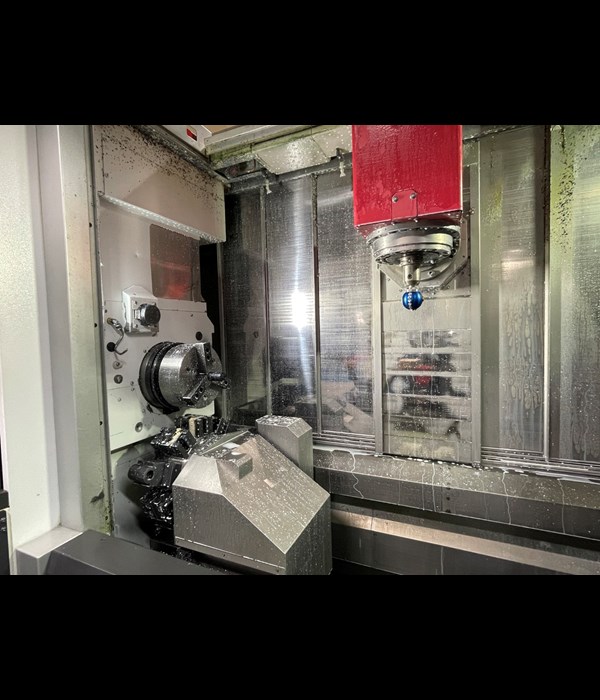

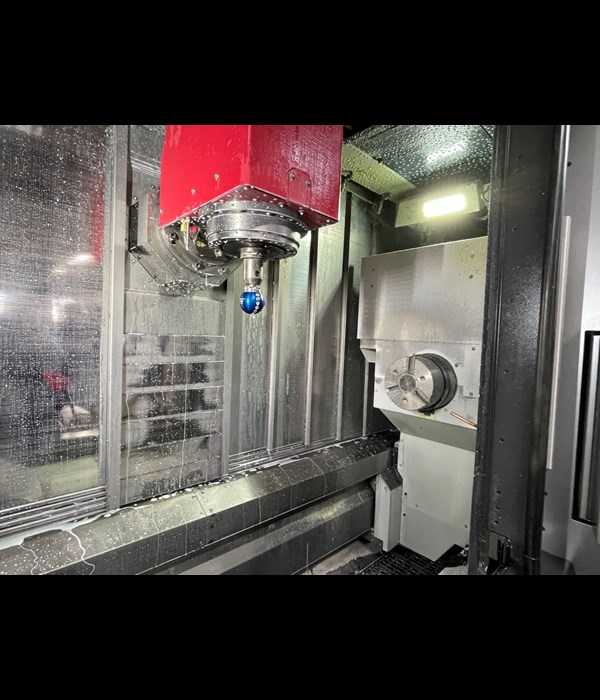

DMG Mori Seiki NTX-2000SZ/1500
CNC Turning center
| Specification | |
|---|---|
| Stock number: | 010803 |
| Serial number: | NTX20130801 |
| Swing over crosslide: | 660mm |
| Turning length: | 1540mm |
| Spindlebore: | 91mm |
| Spindle speed main sp./sub: | 4000/5000rpm |
| Tool magazine: | 76pos. |
| Taper in milling spindle: | Capto C6 |
| Spindle speed milling spindle : | 12000rpm |
| Spindlemotors: | 26/22kW |
| Powersupply max: | 200V/255A |
| Manufacturingyear : | 2013/9 |
| Length: | 5825mm |
| Width: | 2850mm |
| Height: | 2750mm |
| Weight: | 15860kg |
Information
Full B-axle

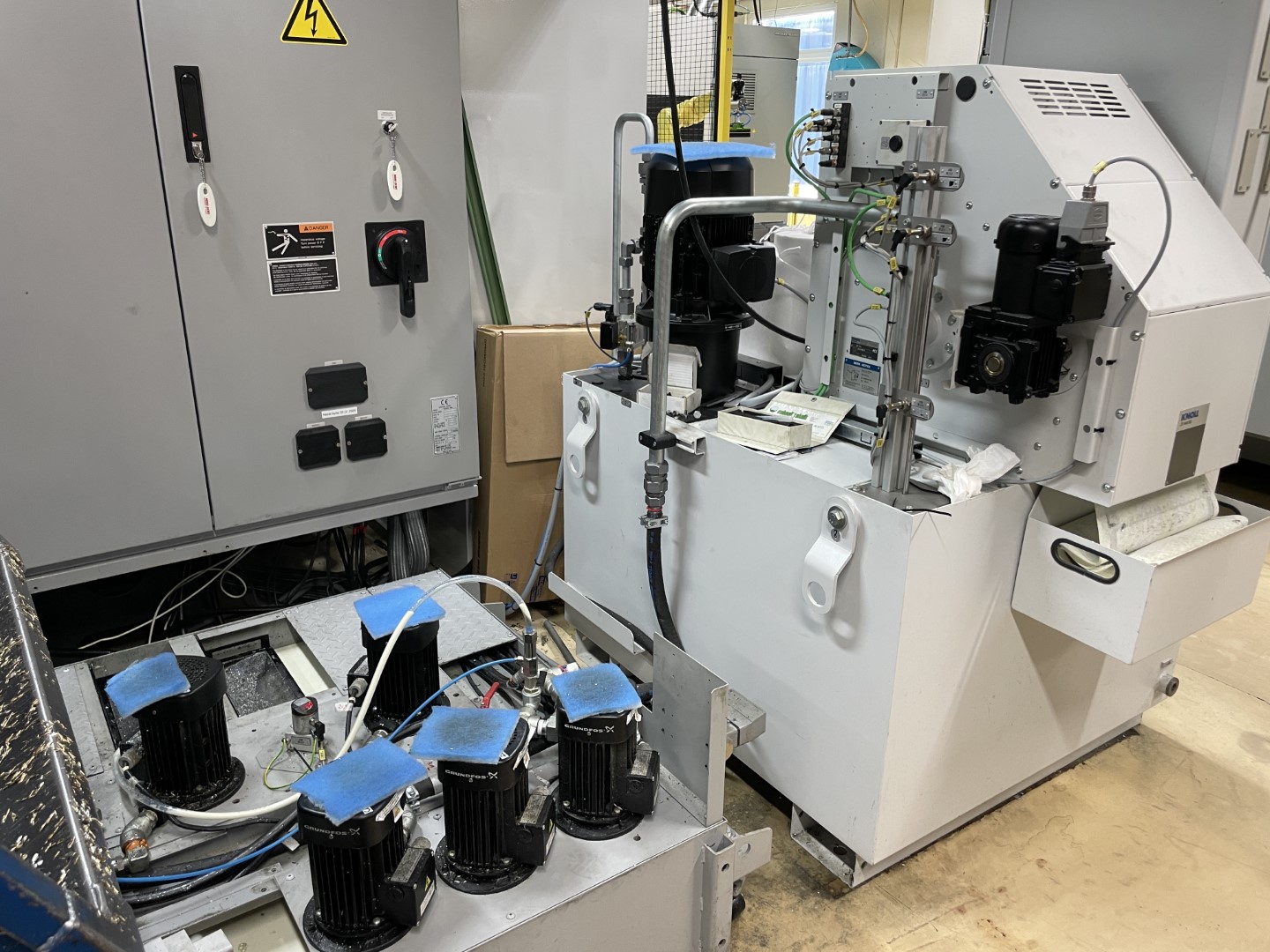

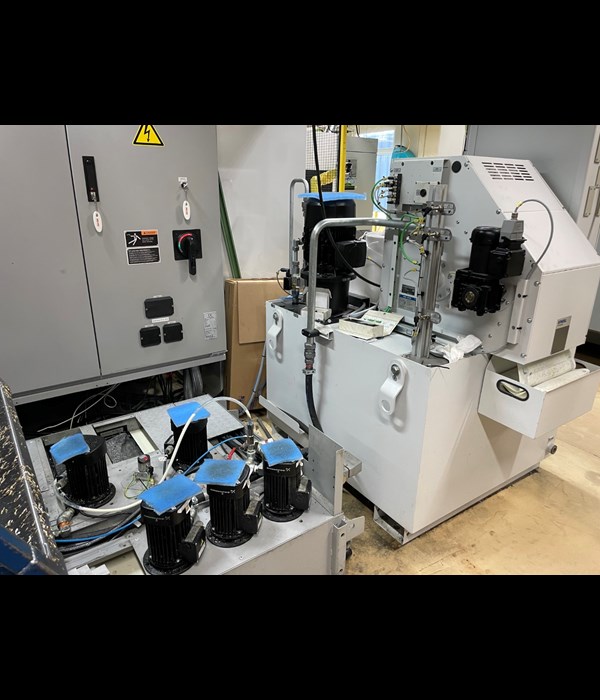

Coolant through milling spindle 70Bar Knoll 110/700
Part picker & out feed belt

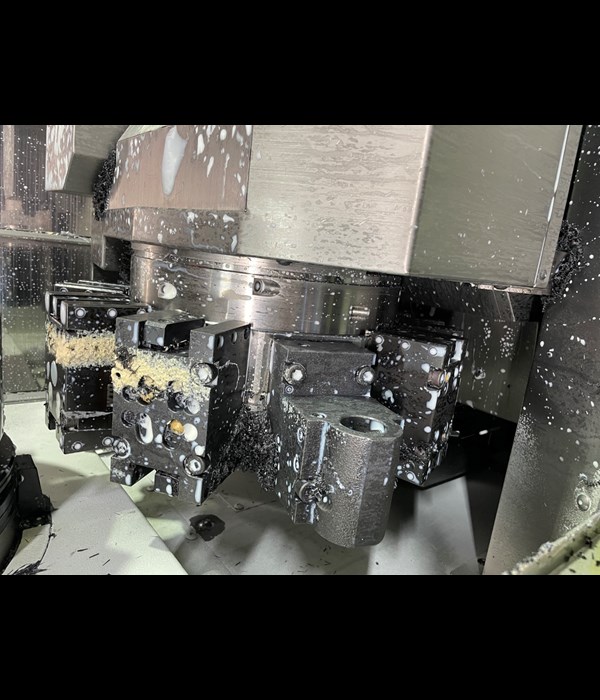

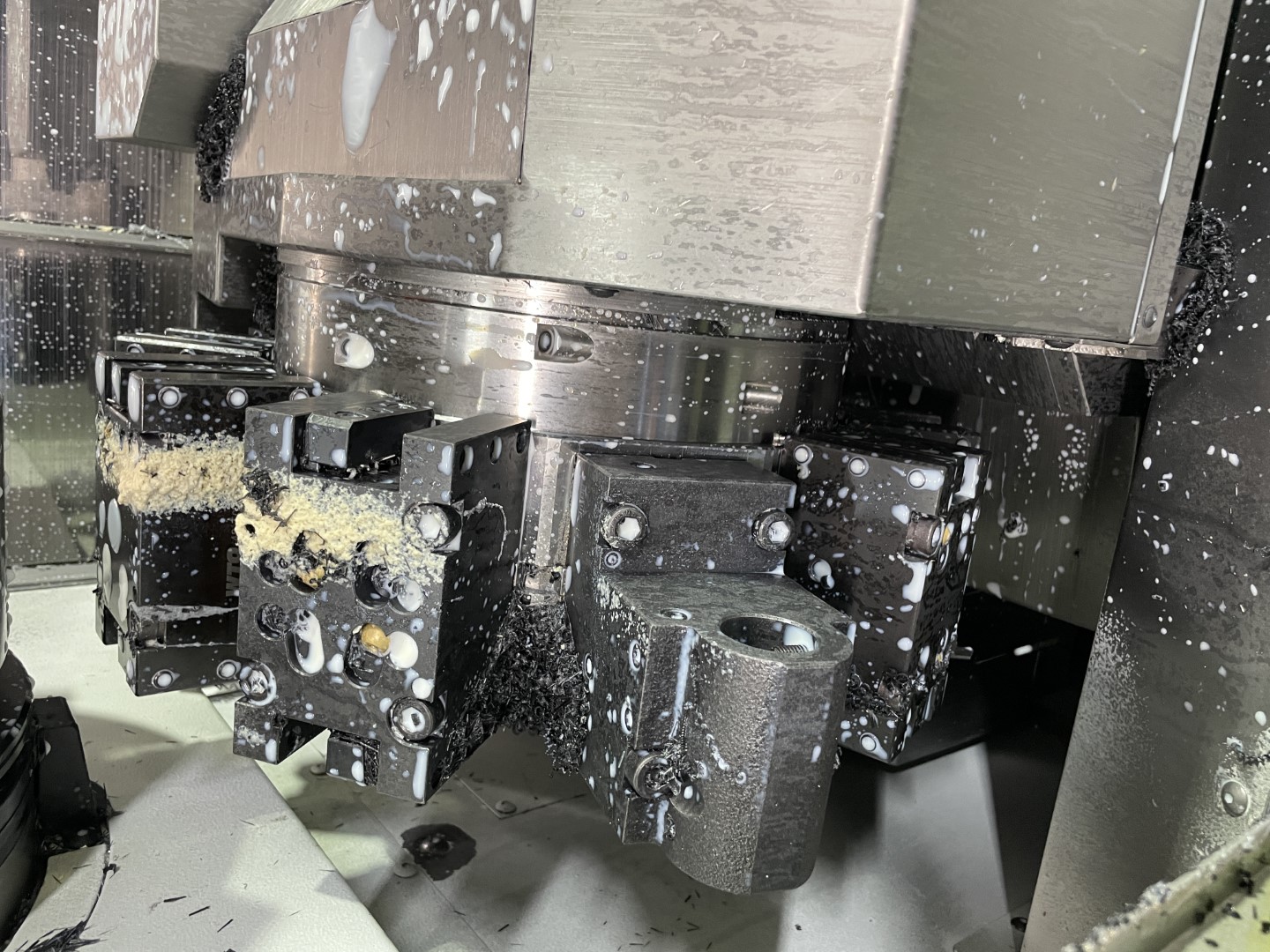

Aut presetter for lower turret & milling spindle
Robotinterface (no robot), aut door & prepared for barfeeder

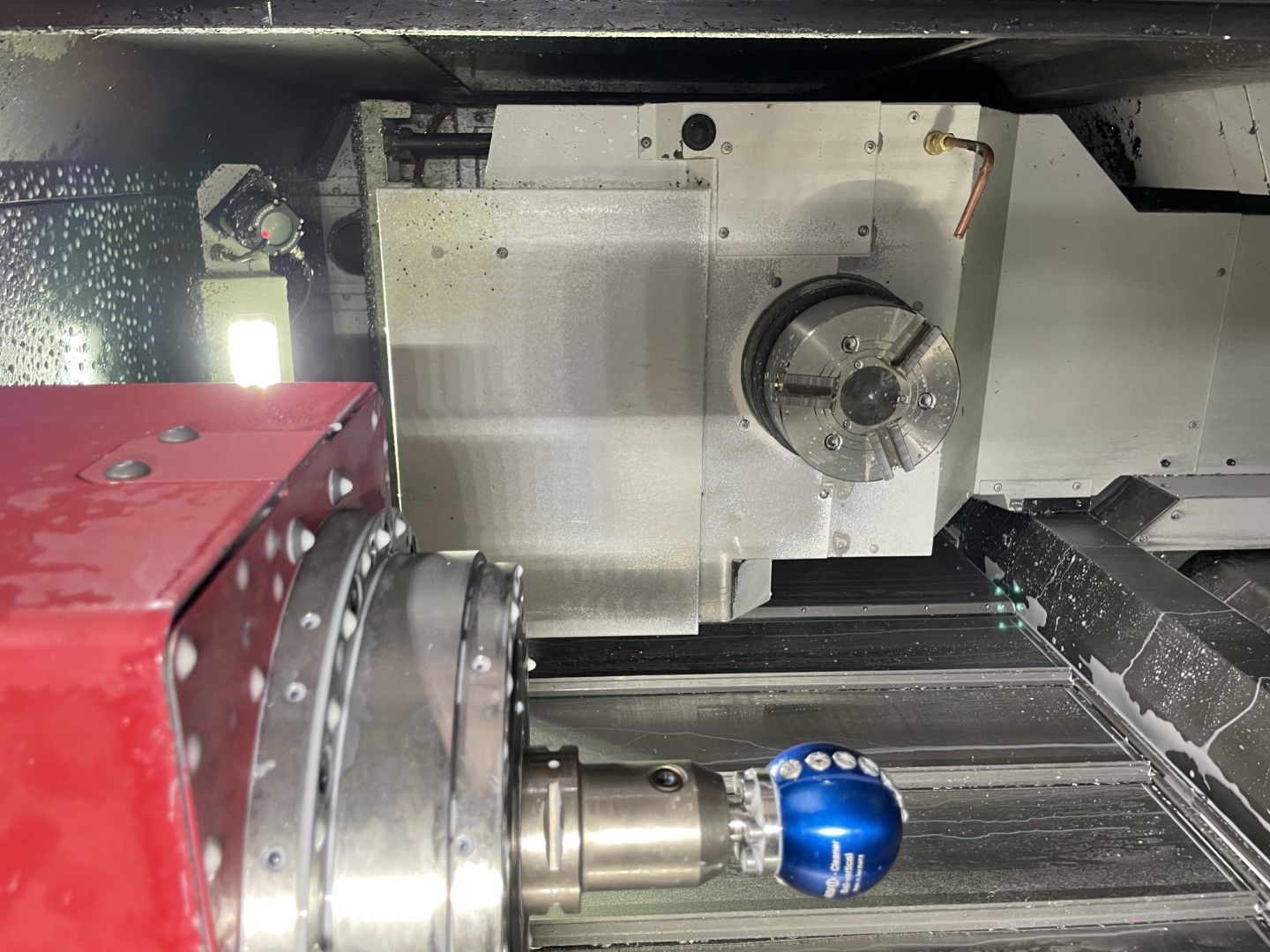

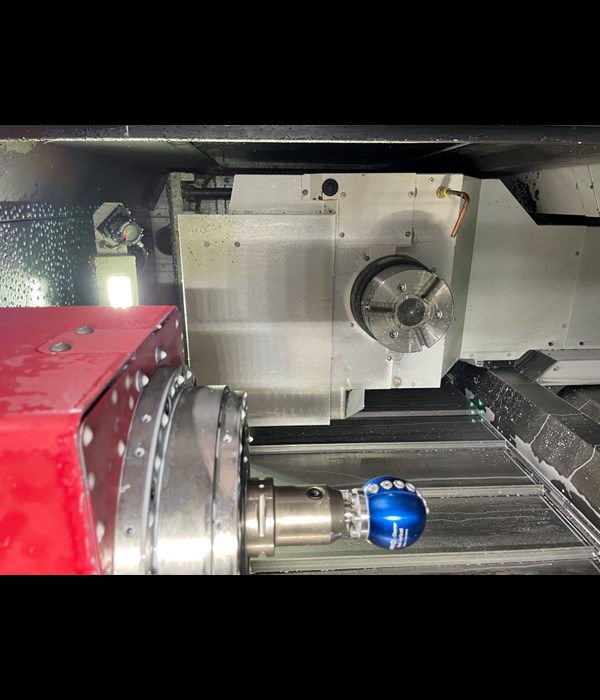

Spindle 2 tailstock function

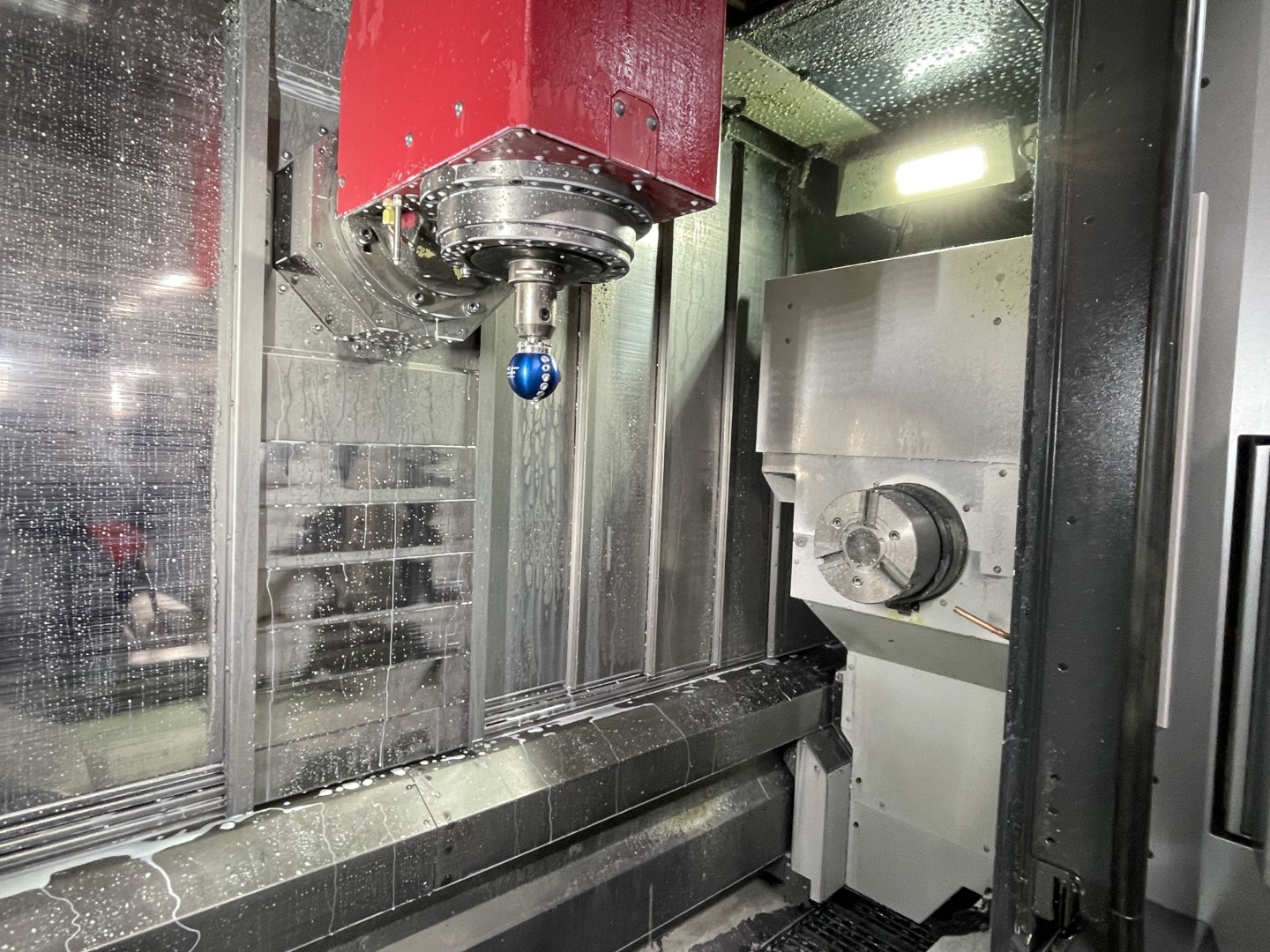

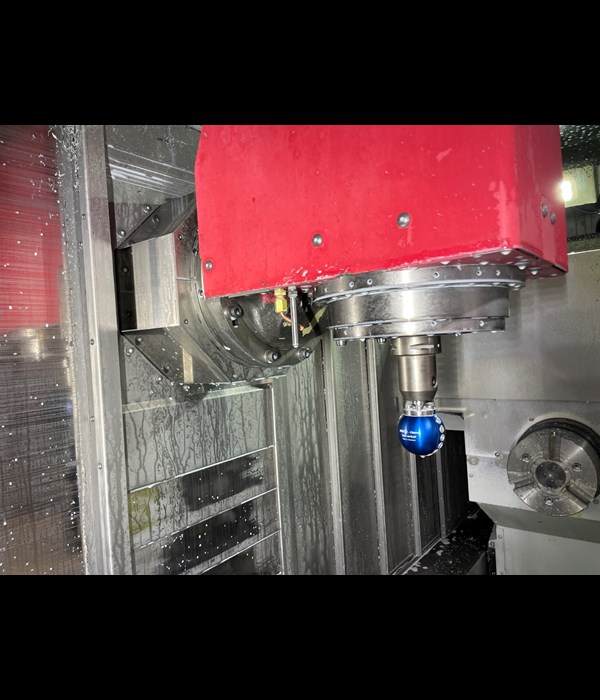

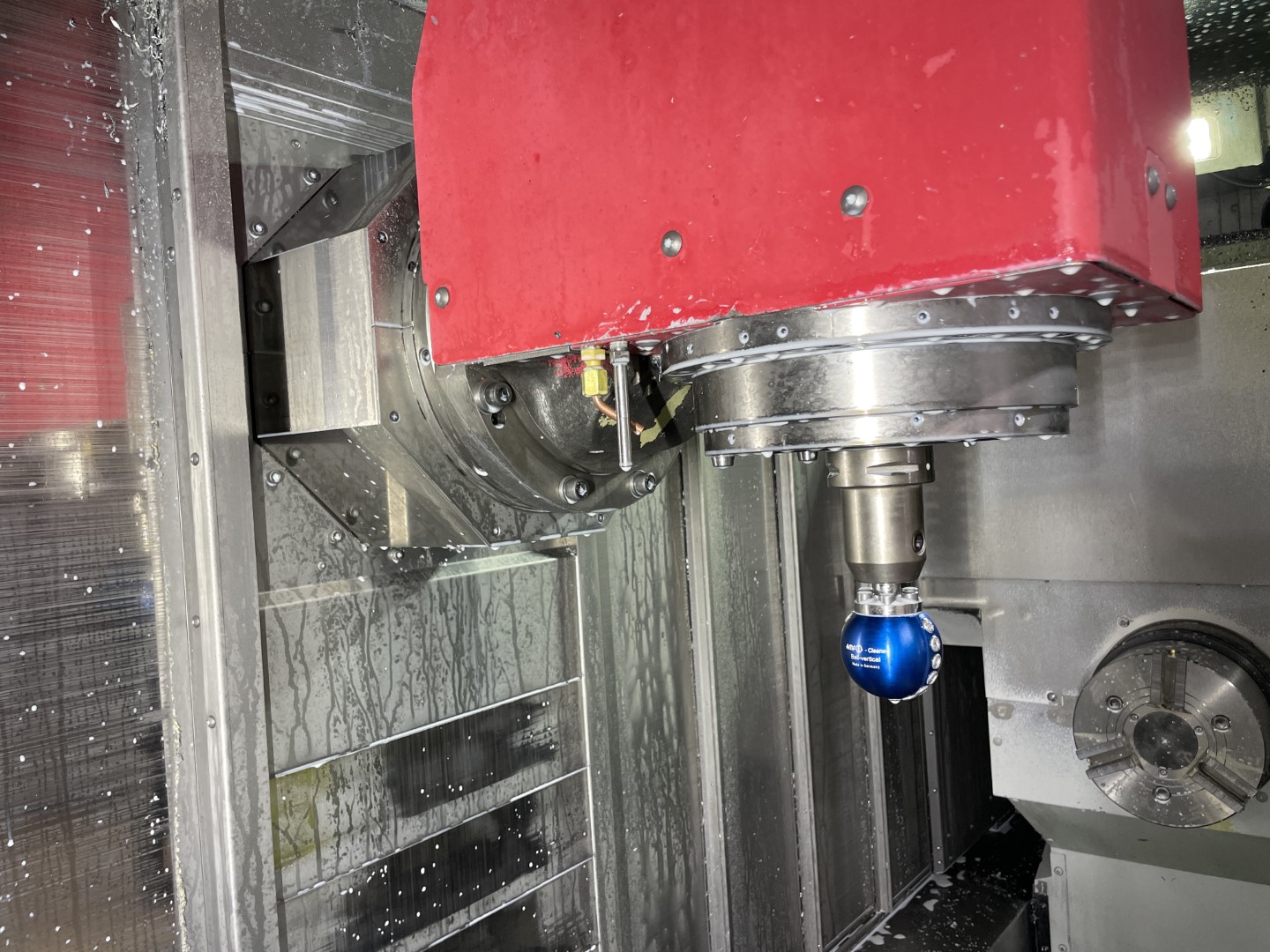

Renishaw OMP60 probe

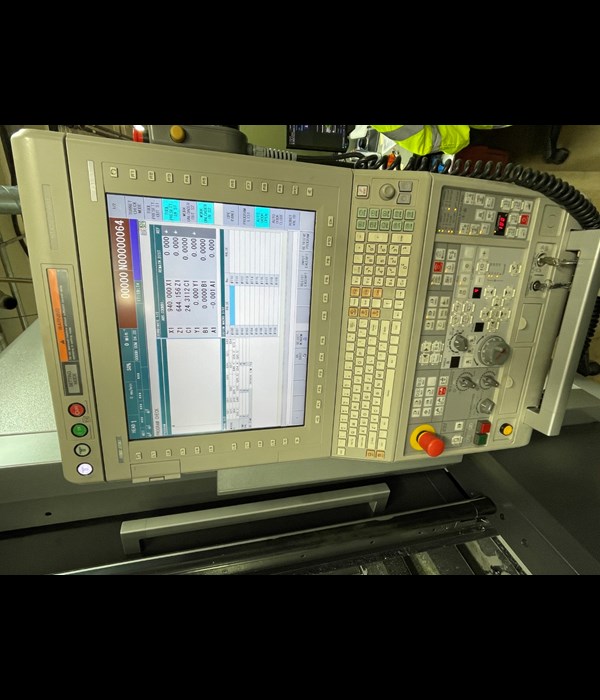

MAPPS-IV CNC 5-axle simultanious control
5 extra M-codes
This info is to the best of our knowledge, but is not binding in detail. Buyers are responsible to ensure machines comply with local safety regulations.
