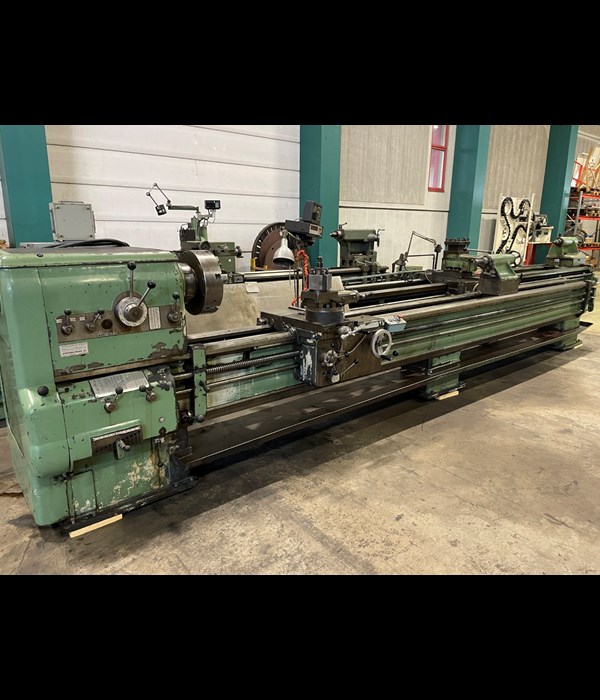

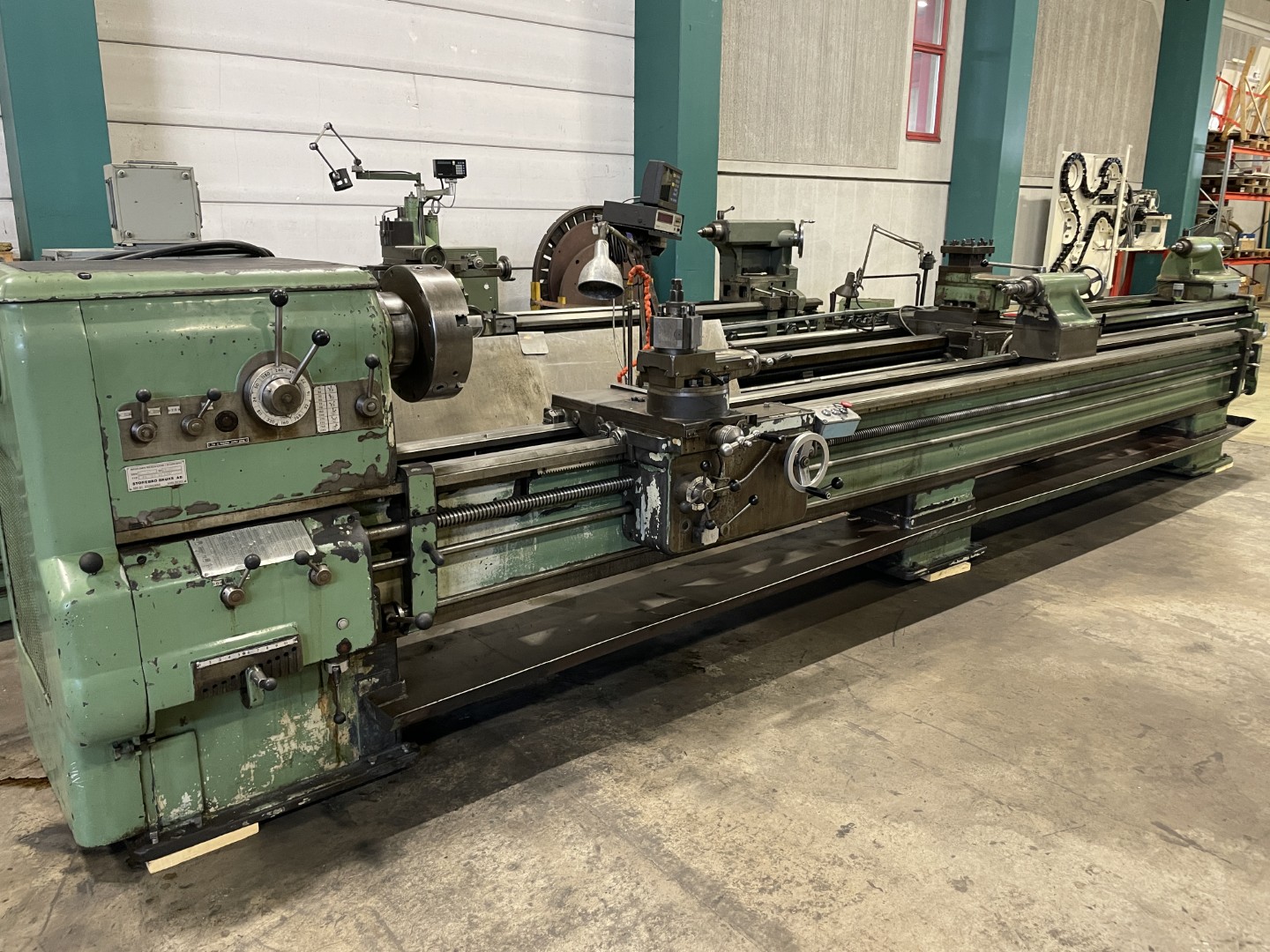

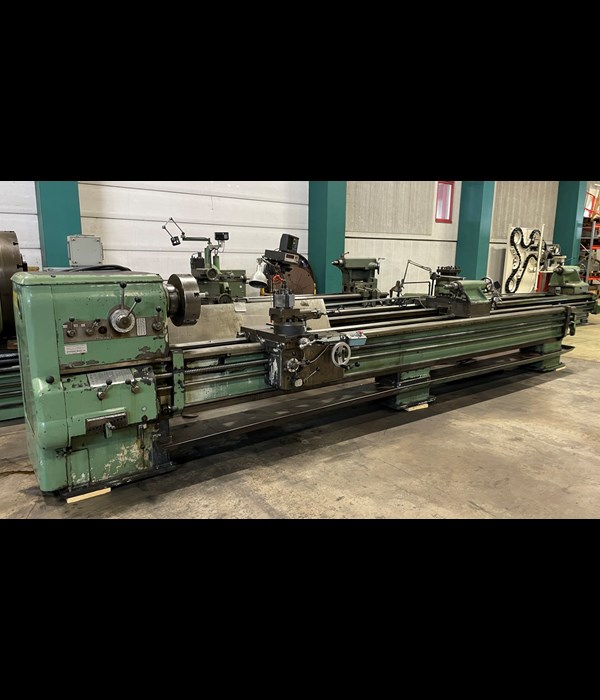

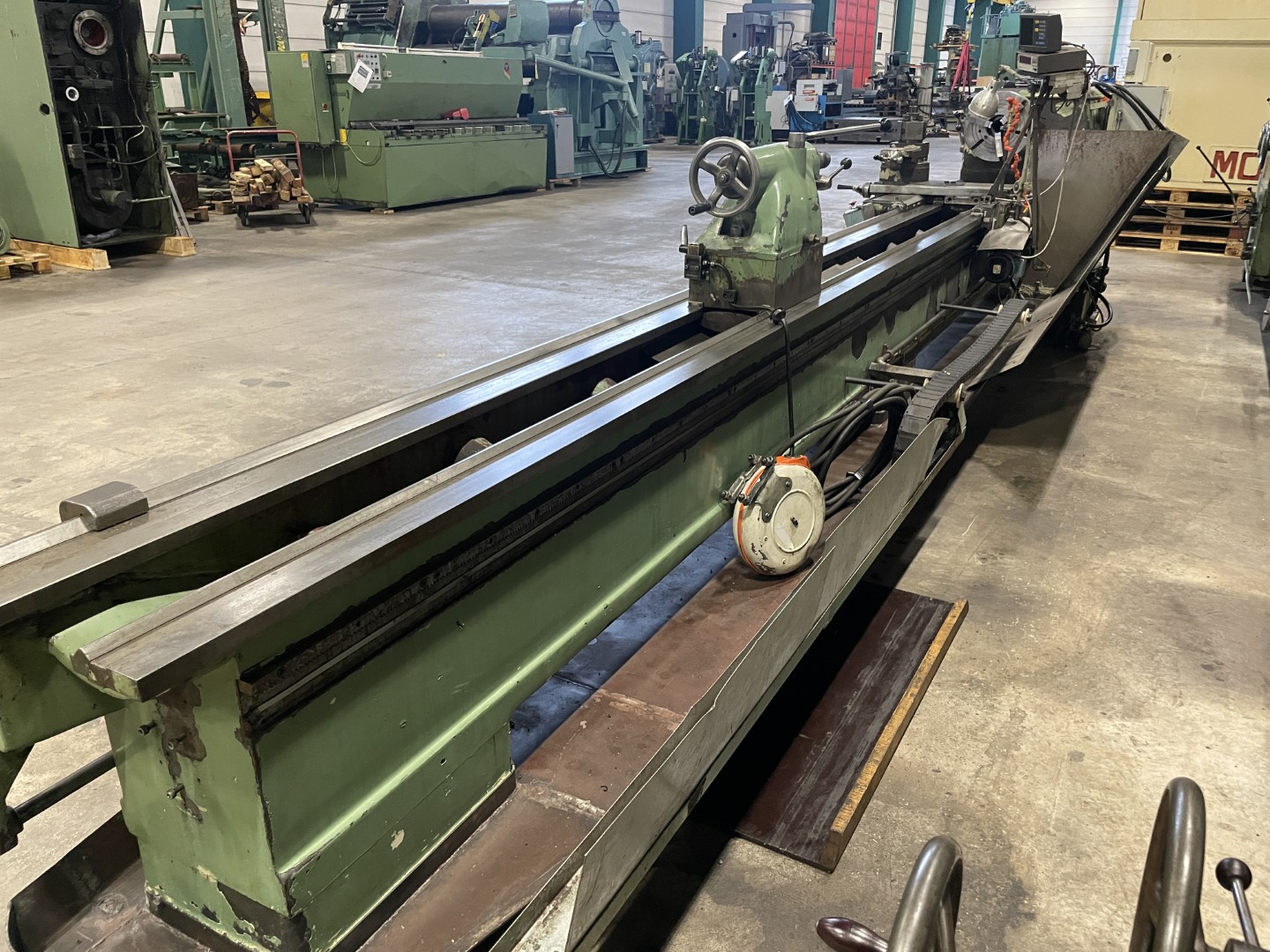

Storebro SB-355x5000
Support lathe
| Specification | |
|---|---|
| Stock number: | 010818 |
| Serial number: | 2007 |
| Swing over bed: | 710mm |
| Swing over crosslide: | 440mm |
| Swing in gap: | 970mm |

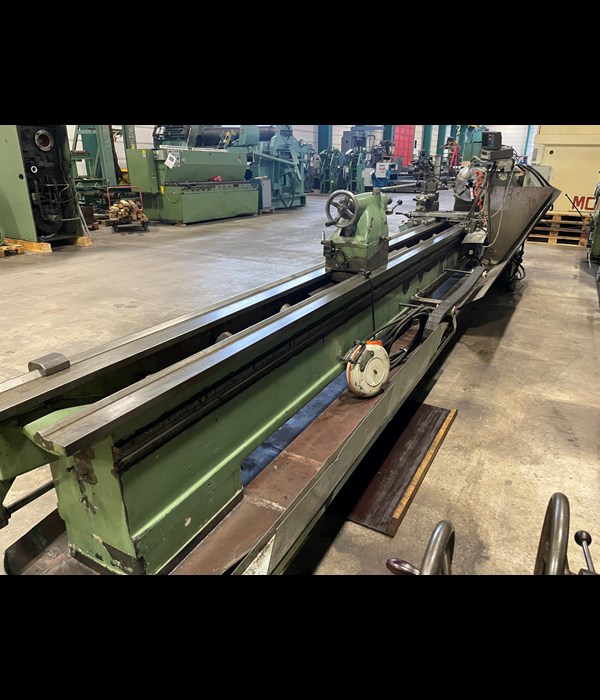

| Center distance: | 5000mm |
| Spindlebore: | 75mm |
| Spindlespeed: | 16-1180rpm |

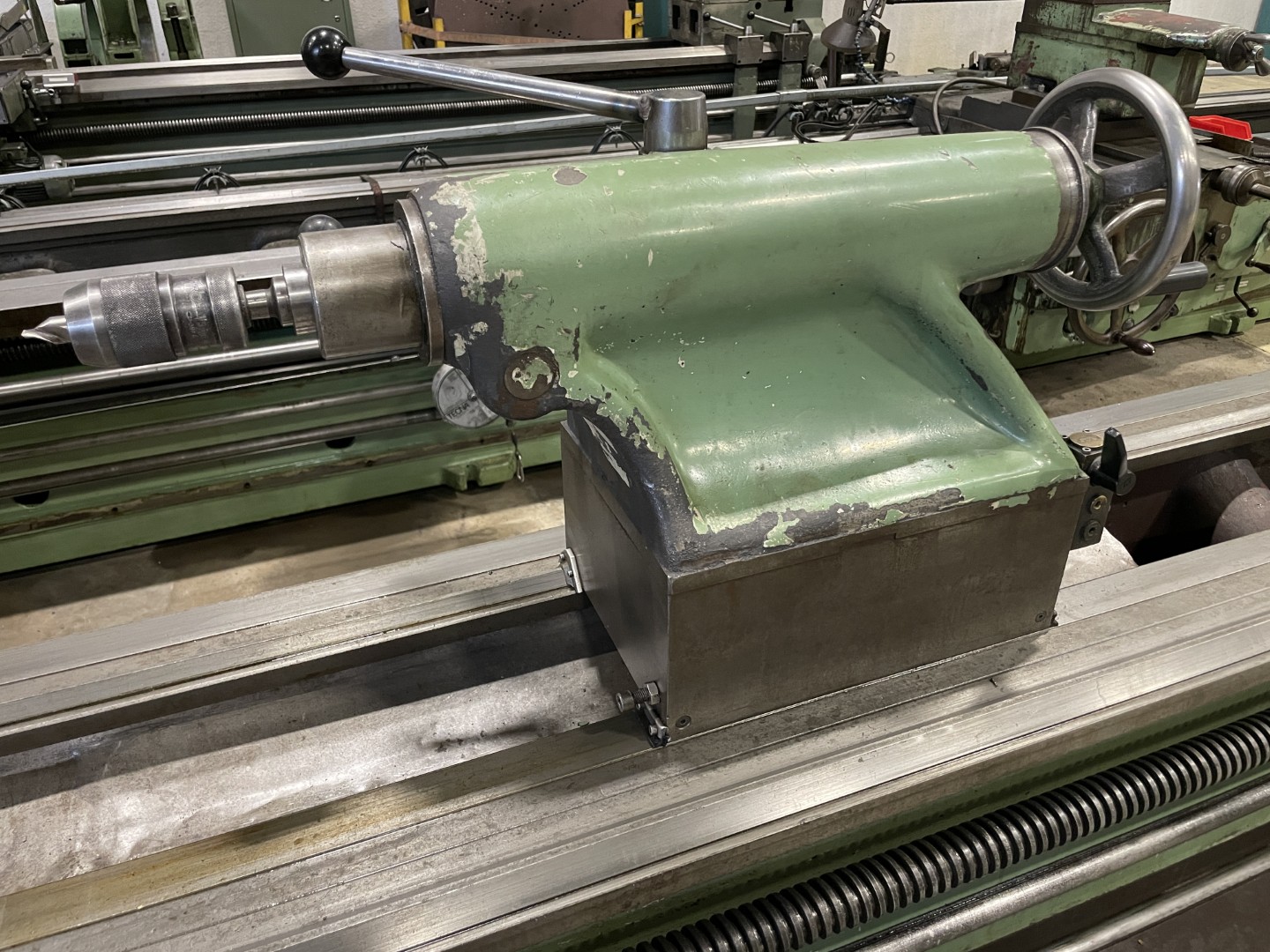

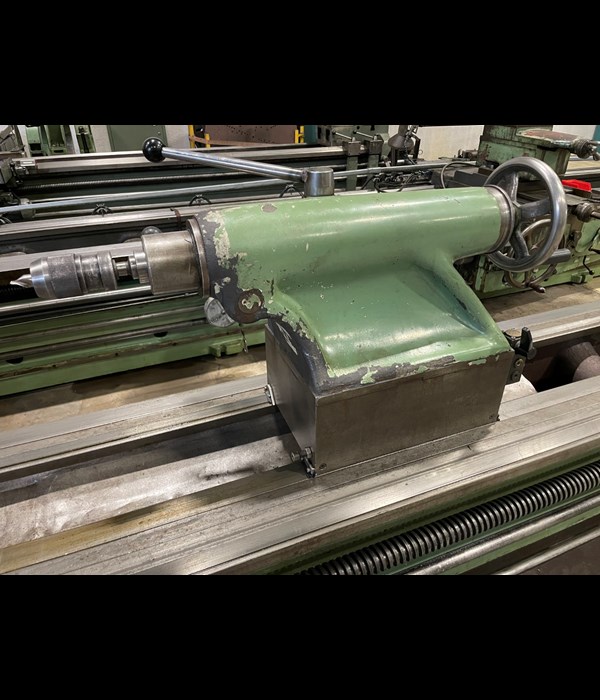

| Taper in tailstock: | Mk5 |
| Longd. feed: | 0,115-3,467mm/r |
| Crosstravel: | 0,111-3,308mm/r |
| Threads metric: | 0,15-12mm |
| Threads inch: | 2-60/" |
| Motor: | 10hp |
| Weight: | |
Information

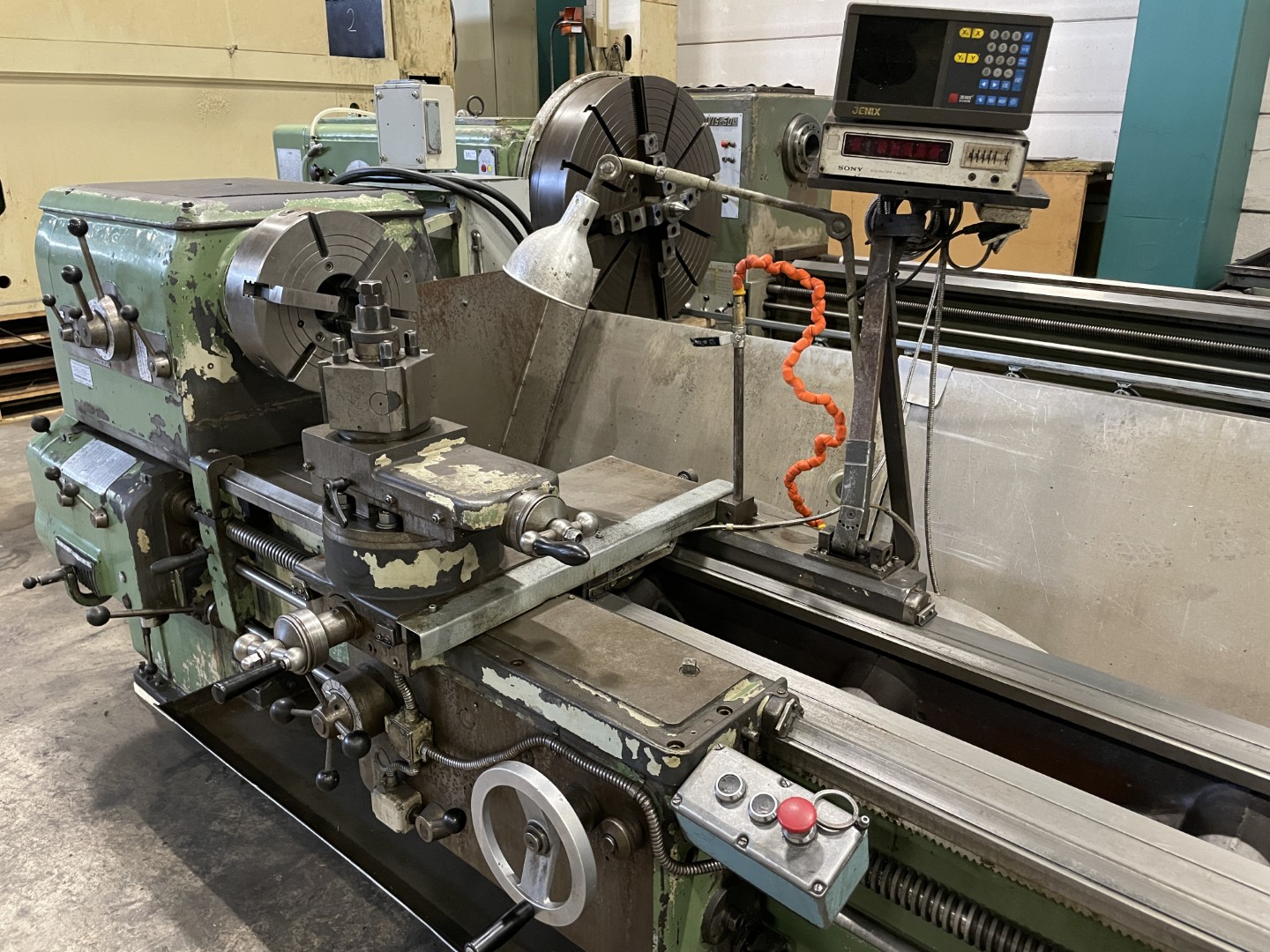

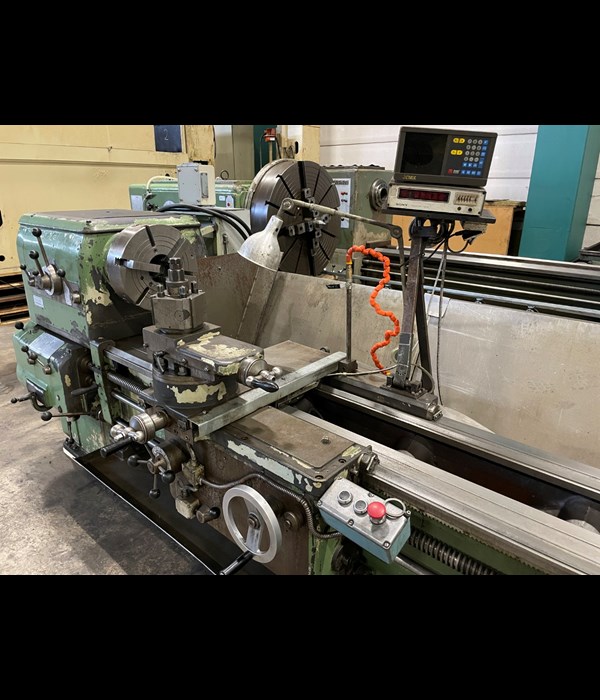

DRO
Fixt steady rests ø155mm, ø365mm, ø555mm
4-jaw chucks ø460mm, ø710mm
Rapid traverse
This info is to the best of our knowledge, but is not binding in detail. Buyers are responsible to ensure machines comply with local safety regulations.
