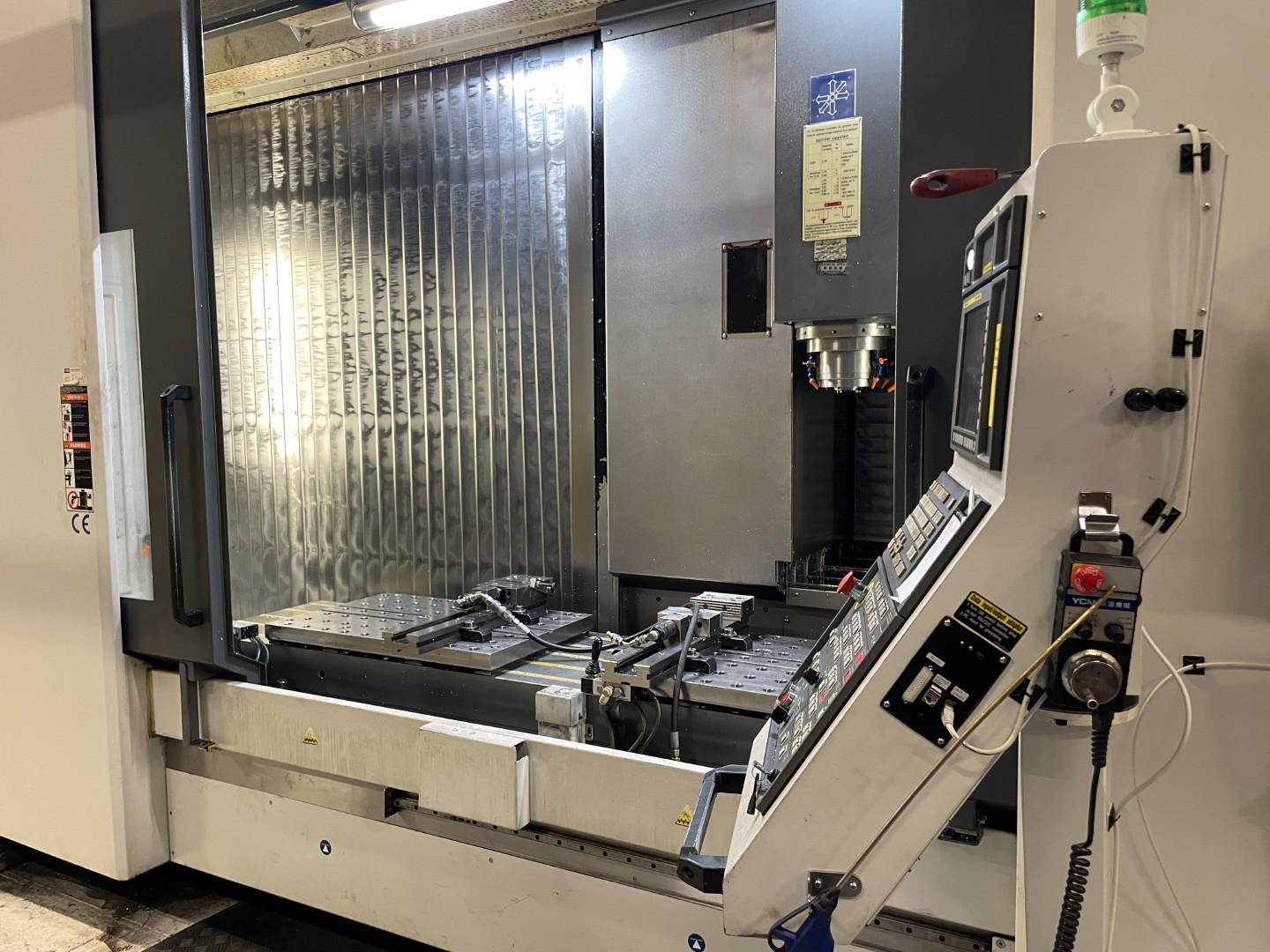

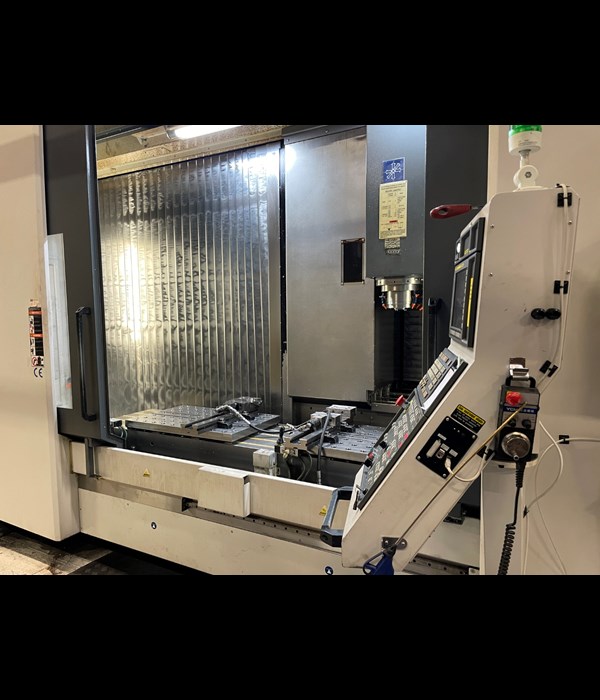

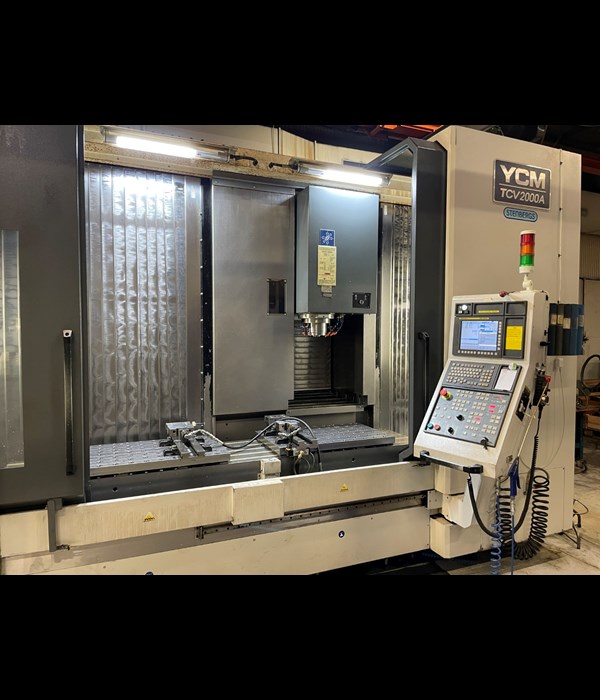

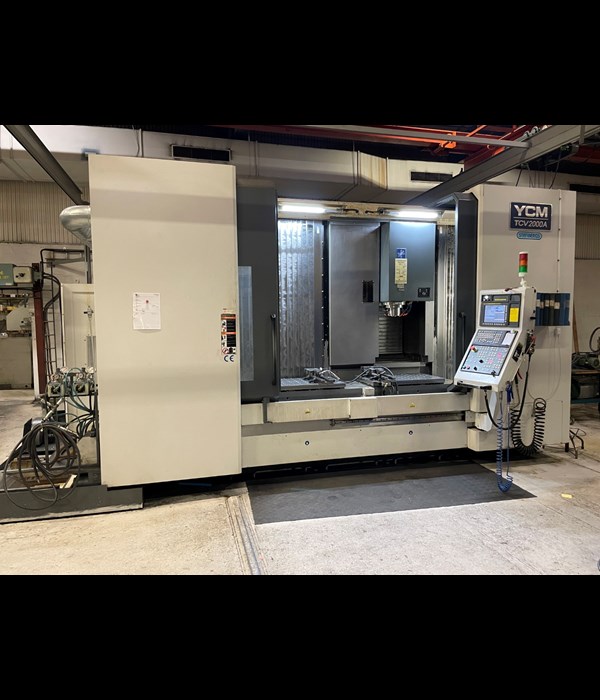

YCM TCV2000A
Vertical machining center
| Specification | |
|---|---|
| Stock number: | 060849 |
| Longd. travel: | 2000mm |
| Crosstravel: | 520mm |
| Vertical travel: | 540mm |
| Table: | 2500x520mm |
| Table load: | 2000kg |
| Spindlespeed: | 60-12000rpm |
| Spindle taper: | BBT40 |

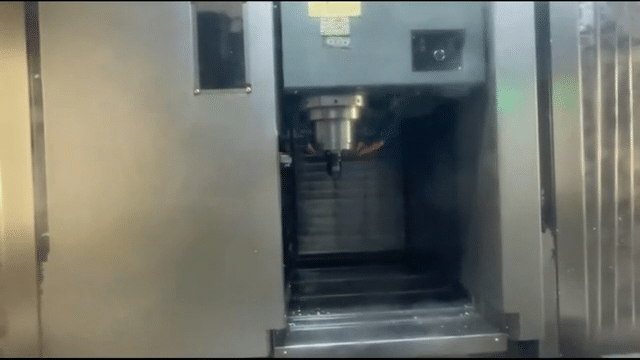

| ATC: | 30pos. |
| Powersupply: | 53kVA |
| Manufacturingyear: | 2012.09 |
| Length: | 4650mm |
| Width: | 3235mm |
| Height: | 2845mm |
| Weight: | 13300kg |
Information

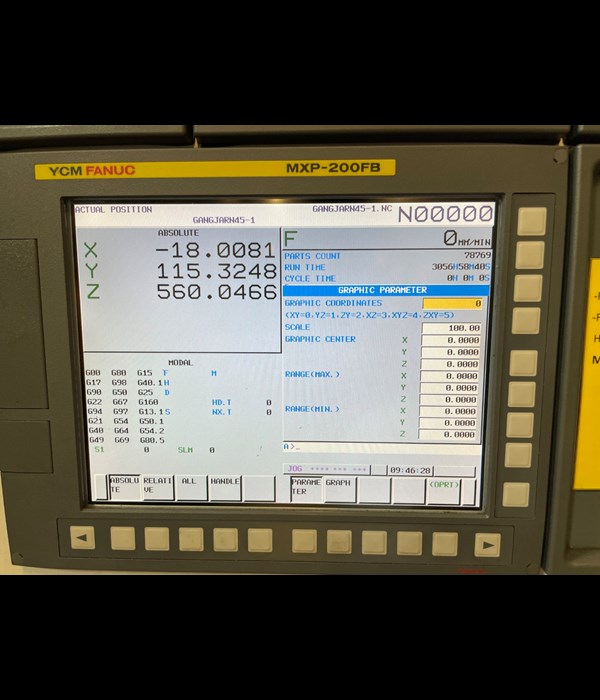

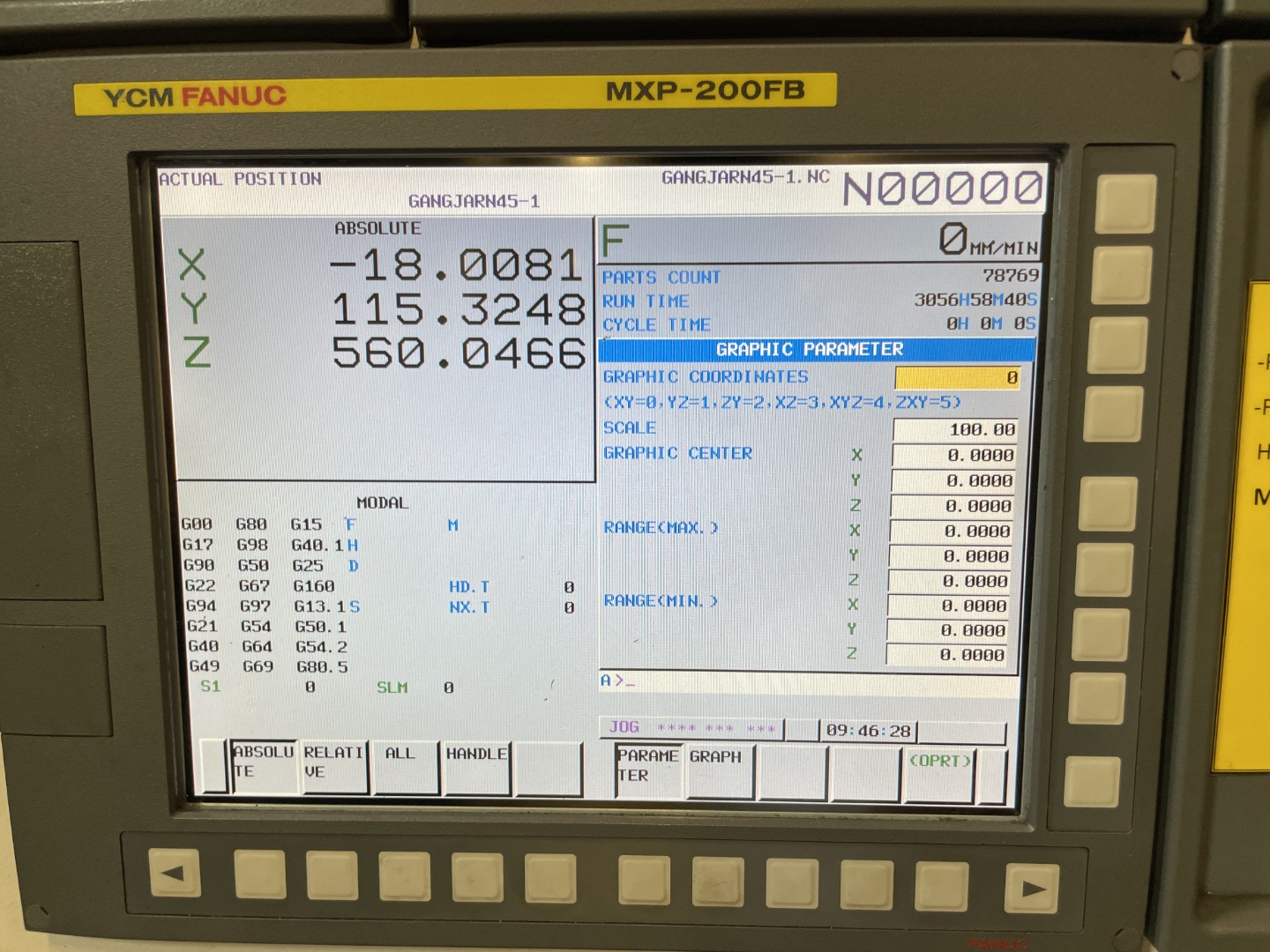

Fanuc MXR-200FB
Runtime: 3060h

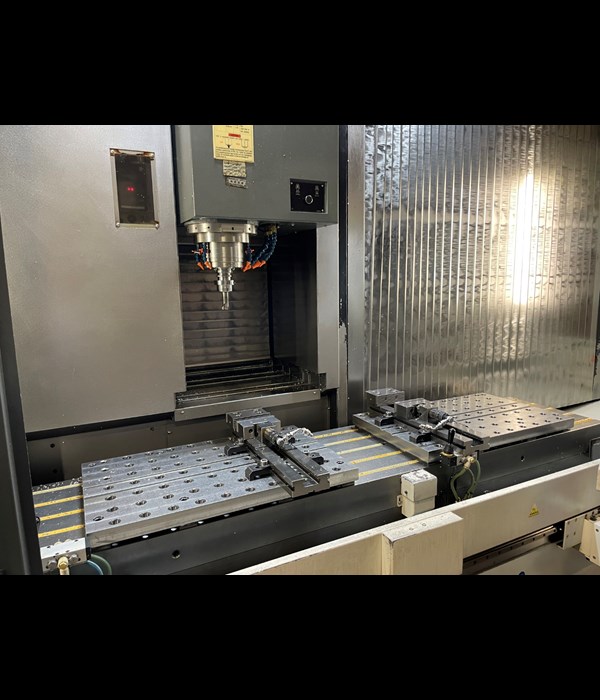

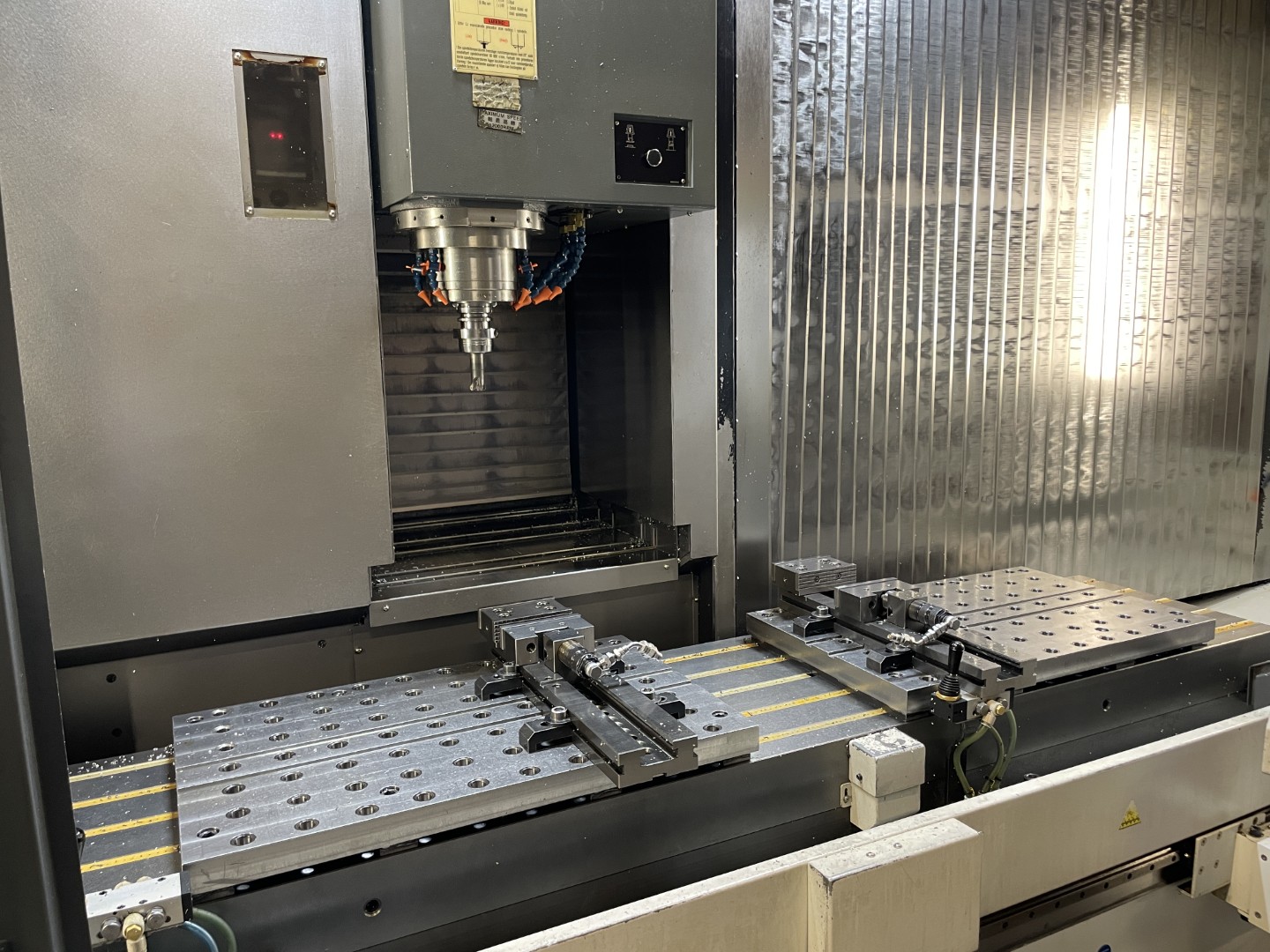

X-axis Travel Working in 2 Areas 2x650mm
Filmer
This info is to the best of our knowledge, but is not binding in detail. Buyers are responsible to ensure machines comply with local safety regulations.
